Control System-Industrial PLC,SCADA,DCS Trainer [RACK BASE]

Order Code: 24258231.25

Category: General Lab Equipment V

Model Type (RACK BASE) Table Top Model: Electronic desk with ironically designed ABS Molded enclosure with slick looking replaceable experiment panel in central slot. Analog I/O channel with potentiometer for AI simulation Co...



SPECIFICATION

Model Type (RACK BASE)

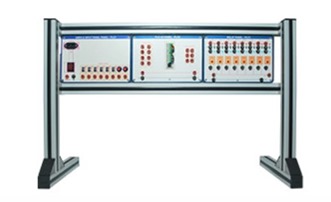

  • Table Top Model: Electronic desk with ironically designed ABS Molded enclosure with slick looking replaceable experiment panel in central slot.

  • Analog I/O channel with potentiometer for AI simulation

  • Connection through sturdy Patch cords & 4mm Banana sockets

  • Include Students workbook & Instructor's Guide

  • Aluminum profile sturdy Flat panel system carrying various high voltage components housed in modular plastic enclosures to minimize shock possibility

CPU (DIO)

  • 16DI + 16DO, Digital inputs 24 V DC (current sinking)

  • Digital outputs: either 24VDC transistorized or relay@ 0.1A.

AIO

  • AI (built in) + 1AO, Input range- 0 to +10V, Resolution- 10 bit

  • Software: STEP 7 Basic programming package – Sematic TIA-V15 Software or compatible

  • Com Ports:  Ethernet Port(RJ45) for Ladder Programing, RS485 for HMI

Converter cum Distribution Panel

  • Converts screw driver terminal strip of PLC into 4mm sockets total 64 nos.

  • Maximum 24 for Digital Inputs, 16 for Digital Outputs, 2 for Analog I/O & 16 for +24V Supply & GND. Facilitates easy replacement /maintenance / wiring.

Simulation cum Extension Panel (1)

  • 8 No. of Digital Input. (4 toggle switches + 4 push buttons)2. No. of 4mm banana sockets =36

Simulation cum Extension Panel (2)

  • Combined 8 Led indicator +Relay Panel / Relay 24V & contact rating of 230VAC / 1A (Resistive).

Simulation cum Extension Panel (3)

  • 6 No. of Potentiometer to simulate inputs to AI.  2 No. of Analog outputs terminated on banana sockets. 3. No. of 4mm banana sockets =18

Operating voltage

  • A Separate SMPS power supply panel- I/P: 110/20/230Vac + 10% 50/60 Hz, O/P: 24V / 2 A

  • AC O/P:  2 x 3 pairs of banana sockets for 230V O/P with switch & fuse protection

Static Application Panel SAPs
Replaceable Static Application Panel which may be inserted onto common baseboard -

  • Door Bell Operation

  • Switching of lights

  • Silo Control

  • Seven Segment Display

  • Starter Control

  • Sequential Control of Motors

  • Star Delta Control

  • Resistance Welding

  • Tank Level Control

  • Traffic Light Control

  • Bottling Plant

  • Drink Dispenses

  • Reaction Vessel

  • Oven

  • Parking Garage

  • Combination Lock

  • Elevator Simulator

  • Process Control Trainer

  • Washing Machine
